EN AW-6063 · Architectural aluminium alloy

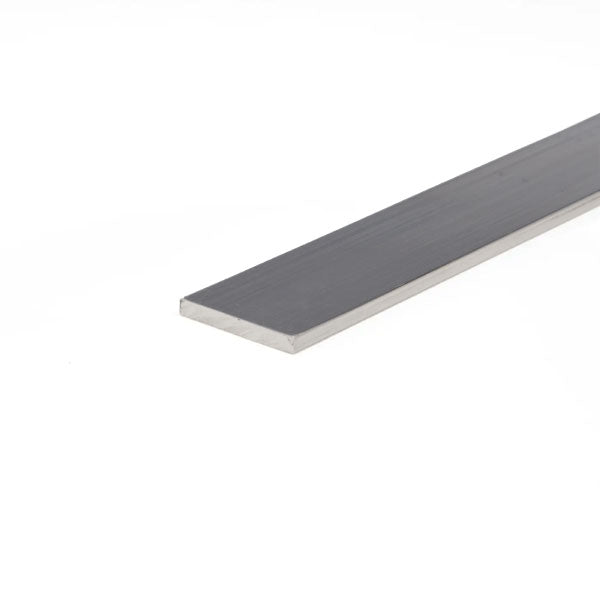

Aluminium Flat Bar 31.7mm x 4.8mm Mill Finish 6063 Corrosion-Resistant Lightweight Fair Weldability
31.7 × 4.8 mmMill Finish1000mm length
13 reviews, rated 5.0 out of 5
- Excellent corrosion resistance
- Fair weldability
£13.32incl. VATper 1000mm length
Quantity 1 = one 1000mm length.
Secure checkout: Card, Apple Pay, Google Pay or Shop Pay
- Availability
- Available to order
- Delivery
- UK only. Flat £20 delivery per order. Handling 1–2 working days, then 2–4 working days in transit. Delivery information
- Returns
- Return within 14 days of receipt. Returns policy
Overview
Overview
About this aluminium flat bar
Material: Aluminium is a lightweight non-ferrous metal known for its excellent corrosion resistance, high strength-to-weight ratio, and good thermal and electrical conductivity. It is widely used in various industries due to its versatility.
Weldability: The fair weldability indicates that while aluminium can be welded, some care and specific techniques may be needed to achieve satisfactory results. Welding considerations include factors such as heat input and joint design.
Shape: The flat bar shape indicates a long, rectangular cross-section with a flat surface. Flat bars are commonly used in construction, manufacturing, and other applications where a flat and elongated profile is required.
Corrosion Resistance: Aluminium exhibits excellent corrosion resistance due to the formation of a protective oxide layer on its surface. This property makes it suitable for use in corrosive environments or outdoor applications.
Finish: The mill finish suggests that the flat bar has a surface finish as it comes directly from the manufacturing process, without additional surface treatment or polishing. Mill finish surfaces often have a slightly textured appearance.
Grade: 6063 is a heat-treatable aluminium alloy known for its high strength and good machinability. It is commonly used in structural applications and offers a good balance of properties.
Thickness: The thickness of the flat bar is 4.8 millimetres, indicating the distance between its two parallel surfaces.
Width: The width of the flat bar is 31.8 millimetres, representing the measurement across the broader dimension of the rectangular cross-section.
Weight/Metre (Kg): The weight per meter of the flat bar is 0.41 kilograms, providing information about its mass per unit length.
| Maximum Length | 5 Metres |
|---|---|
| Material | Aluminium |
| Weldability | Fair |
| Shape | Flat Bar |
| Corrosion Resistance | Excellent |
| Finish | Mill Finish |
| Grade | 6063 |
| Thickness | 4.8mm |
| Width | 31.8mm |
| Weight/Metre (Kg) | 0.41 |
Key features
- Grade 6063 (EN AW-6063, architectural aluminium alloy)
- Excellent corrosion resistance
- Fair weldability
FAQs
FAQs
Before you order
What does one unit of this item supply?
Quantity 1 = one 1000mm length.
Can you supply other sizes or a cutting list?
Yes — send the sizes and lengths you need with Request a quote, or call 01744 520110.
Specifications
Specifications
Product dimensions
| Size | 31.7 × 4.8 mm |
|---|---|
| Supplied length | 1000mm |
| Weight | 0.41 kg/m |
| Finish | Mill Finish |
| Grade | 6063 |
| SKU | M4U-270-1000mm |
Material properties
| Maximum Length | 5 Metres |
|---|---|
| Material | Aluminium |
| Weldability | Fair |
| Shape | Flat Bar |
| Corrosion Resistance | Excellent |
| Thickness | 4.8mm |
| Width | 31.8mm |
Catalogue name Aluminium Flat Bar 31.7mm x 4.8mm Mill Finish 6063 Corrosion-Resistant Lightweight Fair Weldability
Technical data (EN AW-6063)
Technical data · alloy
6063 / EN AW-6063
- Si 0.2–0.6%Silicon
- Mg 0.45–0.9%Magnesium
- Alloy
- Architectural aluminium alloy
- Designation
- EN AW-6063
- Density
- 2.70 g/cm³
Typical composition for the grade, for guidance — not a mill certificate for this item.
