EN AW-6082 · Structural aluminium alloy

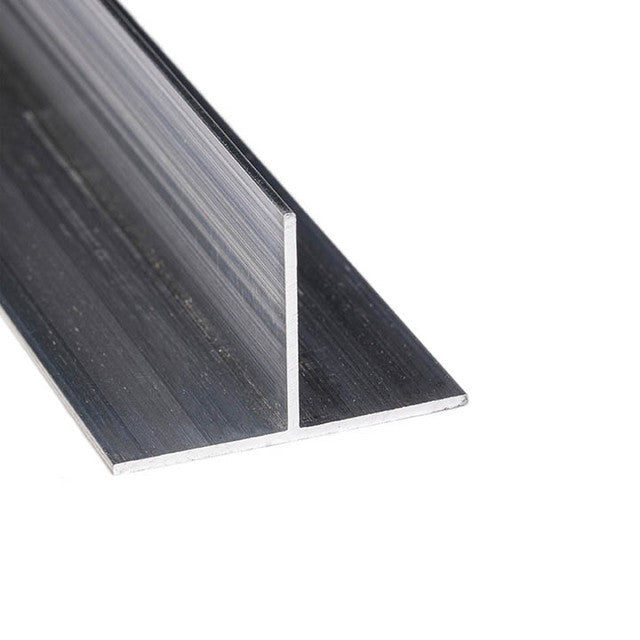

50.8mm x 50.8mm x 3.2mm Aluminium T-Section Mill Finish Strong, Corrosion-Resistant, Lightweight for Framing, Support, Edging
50.8 × 50.8 × 3.2 mm (2″ × 2″ × 1/8″)Mill Finish length
8 reviews, rated 4.6 out of 5
50.8 × 50.8 × 3.2 mm
- Excellent corrosion resistance
- Fair weldability
- Cut to the metres you order
£35.00incl. VATper metre
Quantity 1 = 1 metre. Up to 5 m comes as one piece; longer totals are supplied in pieces of up to 5 m.
Secure checkout: Card, Apple Pay, Google Pay or Shop Pay
- Availability
- Available to order
- Delivery
- UK only. Flat £20 delivery per order. Handling 1–2 working days, then 2–4 working days in transit. Delivery information
- Returns
- Return within 14 days of receipt. Returns policy
- Cutting
- Cut from stock to the metres you order. How cutting works
Overview
Overview
About this aluminium t-section
-
Material: The T-Section is made from aluminum, a lightweight and corrosion-resistant metal known for its versatility and durability.
- Weldability: The aluminum used in this T-Section exhibits fair weldability. While it can be welded, additional care and attention may be needed during the welding process to ensure optimal results.
- Shape: As the name suggests, the T-Section is characterized by its T-shaped cross-section.
- Corrosion Resistance: Featuring excellent corrosion resistance, the aluminum T-Section is well-suited for applications where exposure to moisture and other corrosive elements is a concern.
- Finish: The T-Section features a Mill Finish, indicating the untreated surface of the aluminum as it comes from the extrusion process.
- Grade: The aluminum used in this T-Section is of Grade 6082, a heat-treatable alloy known for its high strength and excellent corrosion resistance.
- Height: The specified height of the T-Section is 50.8mm. This dimension is crucial for determining the structural profile and load-bearing capacity of the section in various applications.
- Thickness: The specified thickness of the T-Section is 3.2mm. This dimension is important for assessing the overall strength and durability of the section.
- Width: The specified width of the T-Section is 50.8mm. This dimension, combined with the height, defines the overall geometry of the T-Section.
- Weight/Metre (Kg): The weight of one meter of this T-Section is 0.85 kilograms. This weight specification is essential for calculating material requirements.
Specifications
| Maximum Length | 5 Metres |
|---|---|
| Material | Aluminium |
| Weldability | Fair |
| Shape | T-Section |
| Corrosion Resistance | Excellent |
| Finish | Mill Finish |
| Grade | 6082 |
| Height | 50.8mm |
| Thickness | 3.2mm |
| Width | 50.8mm |
| Weight/Metre (Kg) | 0.85 |
Key features
- Grade 6082 (EN AW-6082, structural aluminium alloy)
- Excellent corrosion resistance
- Fair weldability
- Cut to the metres you order
FAQs
FAQs
Before you order
What does one unit of this item supply?
Quantity 1 = 1 metre. Up to 5 m comes as one piece; longer totals are supplied in pieces of up to 5 m.
Can you supply other sizes or a cutting list?
Yes — send the sizes and lengths you need with Request a quote, or call 01744 520110.
Specifications
Specifications
Product dimensions
| Size | 50.8 × 50.8 × 3.2 mm (2″ × 2″ × 1/8″) |
|---|---|
| Sold by | The metre — cut to your length |
| Longest single piece | 5 m |
| Weight | 0.85 kg/m |
| Finish | Mill Finish |
| Grade | 6082 |
| SKU | — |
Material properties
| Maximum Length | 5 Metres |
|---|---|
| Material | Aluminium |
| Weldability | Fair |
| Shape | T-Section |
| Corrosion Resistance | Excellent |
| Height | 50.8mm |
| Thickness | 3.2mm |
| Width | 50.8mm |
Catalogue name 50.8mm x 50.8mm x 3.2mm Aluminium T-Section Mill Finish Strong, Corrosion-Resistant, Lightweight for Framing, Support, Edging
Technical data (EN AW-6082)
Technical data · alloy
6082 / EN AW-6082
- Si 0.7–1.3%Silicon
- Mg 0.6–1.2%Magnesium
- Mn 0.4–1.0%Manganese
- Alloy
- Structural aluminium alloy
- Designation
- EN AW-6082
- Density
- 2.70 g/cm³
Typical composition for the grade, for guidance — not a mill certificate for this item.
Cutting service
Cutting service
Pay for the length you need, not a full bar
- 01
Pick your size
Choose the section with the size buttons above the basket.
- 02
Enter your length
Set the metres you need — the weight updates as you go.
- 03
We saw-cut and pack
Your metal is cut and packed for transit.
Reviews
What buyers say
8 reviews
“Good value for the price. The T section is durable and resistant to wear. Ive used it for both indoor and outdoor projects without issues.”
Yanne“Lightweight yet incredibly strong ideal for crafting and structural projects. The mill finish gives it a sleek look. Couldn’t be happier.”
Yanett“Strong and reliable! Its easy to work with and fits seamlessly into my project. The only downside is the edges could be a bit smoother.”
Xue“Solid construction and very corrosion resistant. Used it for outdoor framing and its holding up perfectly in all weather conditions.”
Xsara“Super impressed.The mill finish is smooth and doesn’t scratch easily. Perfect for adding support to my DIY shelving project.”
Xiaoke“This product is incredibly lightweight but surprisingly durable. Worked great for edging my garden beds no rust or corrosion so far.”
Xian“Great quality aluminium. Its strong but easy to cut and shape. Perfect for building supports. Only wish it came in more size options.”
Xenia“Exactly what I needed for my project! The T section is lightweight yet sturdy and the mill finish gives it a clean professional look. Highly recommend for framing tasks.”
Xanthe
50.8 × 50.8 × 3.2 mm (2″ × 2″ × 1/8″) £35.00 per metre · 1 m
