SAE 660 Bronze Tube 38.8mm OD x 24.6mm ID, Mill Finish, 6.4mm Wall Thickness, 6.76kg/m, Fair Corrosion Resistance, Poor Weldability - Linear Metre
38.8 mm OD × 6.4 mm wallMill Finish1000mm length
8 reviews, rated 5.0 out of 5
OD = outside diameter · ID = inside diameter · *ID calculated as OD − 2 × wall
- Fair corrosion resistance
- Poor weldability
£526.04incl. VATper 1000mm length
Quantity 1 = one 1000mm length of 38.8 mm OD × 6.4 mm wall.
Secure checkout: Card, Apple Pay, Google Pay or Shop Pay
- Availability
- Available to order
- Delivery
- UK only. Flat £20 delivery per order. Handling 1–2 working days, then 2–4 working days in transit. Delivery information
- Returns
- Return within 14 days of receipt. Returns policy
Overview
Overview

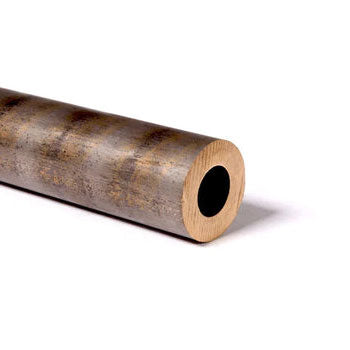

About this bronze round tube
This bronze tube has an outside diameter of 38.8mm, an inside diameter of 24.6mm, is made of SAE 660-grade bronze, has a mill finish, fair corrosion resistance, and poor weldability. The nominal diameter is 38.1mm, and the weight per meter is approximately 6.76 kilograms.
-
Material: Bronze
- The tube is made of bronze, a metal alloy known for its durability and corrosion resistance, typically composed of copper and tin.
-
Outside Diameter (Supplied): 38.8mm (1 1/2" OD)
- The actual supplied outside diameter of the tube is 38.8mm, equivalent to 1 1/2 inches.
-
Weldability: Poor
- The bronze material exhibits poor weldability, suggesting that it may be challenging to weld or may require special considerations during welding processes.
-
Internal Diameter (Supplied): 24.6mm (1" ID)
- The actual supplied internal diameter of the tube is 24.6mm, equivalent to 1 inch.
-
Shape: Tube / Pipe
- The bronze is in the form of a cylindrical tube or pipe, with an outer and inner diameter specified.
-
Corrosion Resistance: Fair
- The material has a fair level of corrosion resistance, suggesting that it can withstand certain environmental conditions but may require maintenance to prevent corrosion over time.
-
Diameter: 38.1mm (1 1/2")
- The nominal diameter of the tube is 38.1mm, providing information about its size.
-
Finish: Mill Finish
- The surface finish is described as "mill finish," indicating that the bronze has not undergone additional treatment or polishing after the manufacturing process.
-
Grade: SAE660
- The material grade is specified as SAE 660, indicating a particular type of bronze alloy with specific characteristics suitable for certain applications.
-
Thickness/Wall Thickness: 6.4mm
- The tube has a specified thickness or wall thickness of 6.4mm, indicating the distance between the inner and outer surfaces of the tube.
-
Weight/Metre (Kg): 6.76
- The weight of the bronze tube is provided, indicating that for every meter of length, the tube weighs approximately 6.76 kilograms.
| Maximum Cut Length | 3 Metres |
|---|---|
| Material | Bronze |
| Outside Diameter (Supplied) | 38.8mm |
| Weldability | Poor |
| Internal Diameter (Supplied) | 24.6mm |
| Shape | Tube / Pipe |
| Corrosion Resistance | Fair |
| Diameter | 38.1mm |
| Finish | Mill Finish |
| Grade | SAE660 |
| Outside Diameter | 38.1mm |
| Thickness | 6.4mm |
| Wall Thickness | 6.4mm |
| Weight/Metre (Kg) | 6.76 |
Key features
- Grade SAE660
- Fair corrosion resistance
- Poor weldability
FAQs
FAQs
Before you order
What does one unit of this item supply?
Quantity 1 = one 1000mm length of 38.8 mm OD × 6.4 mm wall.
Can you supply other sizes or a cutting list?
Yes — send the sizes and lengths you need with Request a quote, or call 01744 520110.
Specifications
Specifications
Product dimensions
| Outside diameter (OD) | 38.8 mm |
|---|---|
| Wall thickness | 6.4 mm |
| Inside diameter (ID) | 26.0 mm calculated |
| Supplied length | 1000mm |
| Weight | 6.76 kg/m |
| Finish | Mill Finish |
| Grade | SAE660 |
| SKU | M4U-2179-1000mm |
Material properties
| Material | Bronze |
|---|---|
| Weldability | Poor |
| Internal Diameter (Supplied) | 24.6mm |
| Shape | Tube / Pipe |
| Corrosion Resistance | Fair |
Catalogue name SAE 660 Bronze Tube 38.8mm OD x 24.6mm ID, Mill Finish, 6.4mm Wall Thickness, 6.76kg/m, Fair Corrosion Resistance, Poor Weldability - Linear Metre
