SAE 660 Bronze Tube 76.9mm OD x 50mm ID, Mill Finish, 12.7mm Wall Thickness, 25.35kg/m, Fair Corrosion Resistance, Poor Weldability - Linear Metre

76.9 mm OD × 12.7 mm wallMill Finish1000mm length

10 reviews, rated 5.0 out of 5

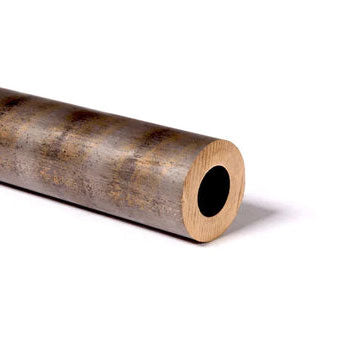

PhotoSAE 660 Bronze Tube 76.9mm OD x 50mm ID, Mill Finish, 12.7mm Wall Thickness, 25.35kg/m, Fair Corrosion Resistance, Poor Weldability - Linear Metre 76.9 mm OD × 12.7 mm wall – photo 1 of 1
Dimensions Cross-section of a 76.9 mm OD × 12.7 mm wall tube Outside diameter 76.9 mm, wall thickness 12.7 mm, inside diameter 51.5 mm (calculated). OD 76.9 mm ID 51.5 mm* Wall 12.7 mm

OD = outside diameter · ID = inside diameter · *ID calculated as OD − 2 × wall

  • Fair corrosion resistance
  • Poor weldability

£1,706.14incl. VATper 1000mm length

Quantity 1 = one 1000mm length of 76.9 mm OD × 12.7 mm wall.

LengthSupplied as one length

Item total £1,706.14 1 × £1,706.14 per 1000mm length

Secure checkout: Card, Apple Pay, Google Pay or Shop Pay

Availability
Available to order
Delivery
UK only. Flat £20 delivery per order. Handling 1–2 working days, then 2–4 working days in transit. Delivery information
Returns
Return within 14 days of receipt. Returns policy
Call 01744 520110Mon – Fri: 08:30 – 17:00 Email about this itemsales@industrialsafety-uk.co.uk
Overview

Overview

About this bronze round tube

This bronze tube has an outside diameter of 76.9mm, an inside diameter of 50mm, is made of SAE 660-grade bronze, has a mill finish, fair corrosion resistance, and poor weldability. The nominal diameter is 76.2mm, and the weight per meter is approximately 25.35 kilograms.

  1. Material: Bronze

    • The tube is made of bronze, a metal alloy known for its durability and corrosion resistance, typically composed of copper and tin.

  2. Outside Diameter (Supplied): 76.9mm (3" OD)

    • The actual supplied outside diameter of the tube is 76.9mm, equivalent to 3 inches.

  3. Weldability: Poor

    • The bronze material exhibits poor weldability, suggesting that it may be challenging to weld or may require special considerations during welding processes.

  4. Internal Diameter (Supplied): 50mm (2" ID)

    • The actual supplied internal diameter of the tube is 50mm, equivalent to 2 inches.

  5. Shape: Tube / Pipe

    • The bronze is in the form of a cylindrical tube or pipe, with an outer and inner diameter specified.

  6. Corrosion Resistance: Fair

    • The material has a fair level of corrosion resistance, suggesting that it can withstand certain environmental conditions but may require maintenance to prevent corrosion over time.

  7. Diameter: 76.2mm (3")

    • The nominal diameter of the tube is 76.2mm, providing information about its size.

  8. Finish: Mill Finish

    • The surface finish is described as "mill finish," indicating that the bronze has not undergone additional treatment or polishing after the manufacturing process.

  9. Grade: SAE660

    • The material grade is specified as SAE 660, indicating a particular type of bronze alloy with specific characteristics suitable for certain applications.

  10. Thickness/Wall Thickness: 12.7mm

    • The tube has a specified thickness or wall thickness of 12.7mm, indicating the distance between the inner and outer surfaces of the tube.

  11. Weight/Metre (Kg): 25.35

    • The weight of the bronze tube is provided, indicating that for every meter of length, the tube weighs approximately 25.35 kilograms.
Specifications
Maximum Cut Length 3 Metres
Material Bronze
Outside Diameter (Supplied) 76.9mm
Weldability Poor
Internal Diameter (Supplied) 50mm
Shape Tube / Pipe
Corrosion Resistance Fair
Diameter 76.2mm
Finish Mill Finish
Grade SAE660
Outside Diameter 76.2mm
Thickness 12.7mm
Wall Thickness 12.7mm
Weight/Metre (Kg) 25.35


Key features

  • Grade SAE660
  • Fair corrosion resistance
  • Poor weldability
FAQs

FAQs

Before you order

What does one unit of this item supply?

Quantity 1 = one 1000mm length of 76.9 mm OD × 12.7 mm wall.

Can you supply other sizes or a cutting list?

Yes — send the sizes and lengths you need with Request a quote, or call 01744 520110.

Specifications

Specifications

Product dimensions

Dimensions and supply details for this bronze round tube
Outside diameter (OD)76.9 mm
Wall thickness12.7 mm
Inside diameter (ID)51.5 mm calculated
Supplied length1000mm
Weight25.35 kg/m
FinishMill Finish
GradeSAE660
SKUM4U-2207-1000mm

Material properties

Material properties
MaterialBronze
WeldabilityPoor
Internal Diameter (Supplied)50mm
ShapeTube / Pipe
Corrosion ResistanceFair

Catalogue name SAE 660 Bronze Tube 76.9mm OD x 50mm ID, Mill Finish, 12.7mm Wall Thickness, 25.35kg/m, Fair Corrosion Resistance, Poor Weldability - Linear Metre

Reviews

What buyers say

10 reviews

  • “This SAE Bronze Tube has great corrosion resistance for the price. It’s a good choice for many basic projects where welding isn’t needed.”
    Jackson
  • “The mill finish looks excellent, and the tube performs well in mild environments. It’s not for welding, but works well otherwise.”
    Lucas
  • “I used this tube for an outdoor project, and it resists rust well. Would recommend for applications not requiring welding.”
    Matthew
