CC481K · Cast phosphor bronze

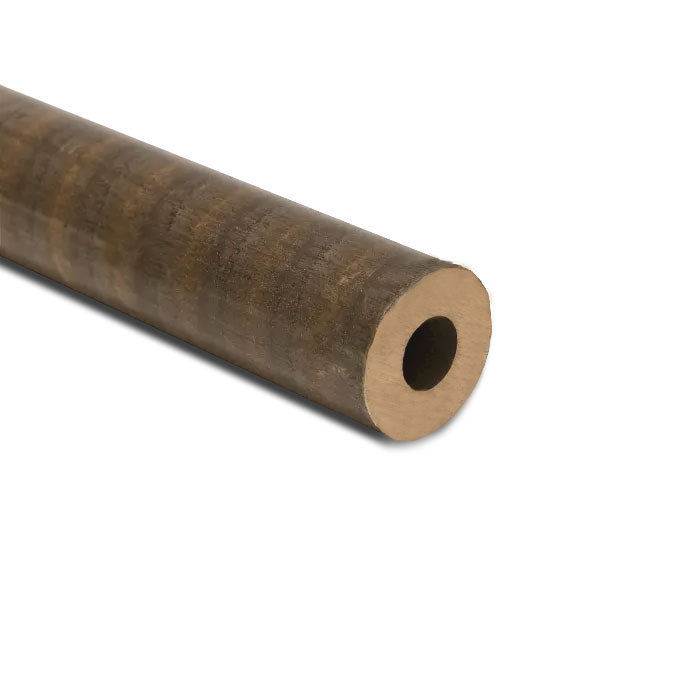

Bronze Round Tube PB1 Mill Finish 76.2mm OD x 50.8mm ID, 12.7mm Wall, 24.6kg/m, Corrosion Resistant, Fair Weldability - Linear Metre
76.9 mm OD × 12.7 mm wall (3″ OD × 2″ ID)Mill Finish500mm length
16 reviews, rated 5.0 out of 5
OD = outside diameter · ID = inside diameter · *ID calculated as OD − 2 × wall
- Good corrosion resistance
- Fair weldability
£963.80incl. VATper 500mm length
Quantity 1 = one 500mm length of 76.9 mm OD × 12.7 mm wall (3″ OD × 2″ ID).
Secure checkout: Card, Apple Pay, Google Pay or Shop Pay
- Availability
- Available to order
- Delivery
- UK only. Flat £20 delivery per order. Handling 1–2 working days, then 2–4 working days in transit. Delivery information
- Returns
- Return within 14 days of receipt. Returns policy
Overview
Overview
About this bronze round tube
This PB1 Bronze Round Tube is perfect for any application that requires corrosion resistance. With a mill finish, reliable weldability, and a weight of 24.6kg per metre, this 76.2mm x 50.8mm (3" OD x 2" ID) tube is sure to meet your needs.
Material: Bronze (PB1) - This indicates that the tube is made of bronze, specifically PB1, suggesting a specific alloy composition with copper as the primary component.
Outside Diameter (Supplied): The tube is supplied with an outside diameter of 76.9mm, allowing for potential machining or finishing.
Weldability: Described as "Fair," implying that the material can be welded, but it may require more careful handling and specific welding techniques compared to materials with excellent weldability.
Internal Diameter (Supplied): The tube has an internal diameter of 50mm, which is the inner dimension of the tube.
Shape: Tube / Pipe - The cross-sectional shape of the tube is cylindrical.
Corrosion Resistance: Good - Indicates that the material has a good resistance to corrosion, making it suitable for applications where exposure to moisture or corrosive environments is expected.
Diameter: The actual outside diameter of the tube is specified as 76.2mm (3").
Finish: Mill Finish - This implies that the surface of the tube is left in its as-machined or as-rolled state, without any additional surface treatment.
Grade: PB1 - This is the specific grade designation for the Bronze material, indicating its particular alloy composition and properties.
Thickness: The thickness of the tube is specified as 12.7mm, indicating the overall thickness of the tube wall.
Wall Thickness: The wall thickness of the tube is also specified as 12.7mm, providing information about the thickness of the tube's sidewalls.
Weight/Metre (Kg): The weight of one meter of the tube is specified as 24.6 kilograms, providing an indication of the material density.
Specifications
| Maximum Cut Length | 1 Metres |
|---|---|
| Material | Bronze |
| Outside Diameter (Supplied) | 76.9mm |
| Weldability | Fair |
| Internal Diameter (Supplied) | 50mm |
| Shape | Tube / Pipe |
| Corrosion Resistance | Good |
| Diameter | 76.2mm |
| Finish | Mill Finish |
| Grade | PB1 |
| Outside Diameter | 76.2mm |
| Thickness | 12.7mm |
| Wall Thickness | 12.7mm |
| Weight/Metre (Kg) | 24.6 |
Key features
- Grade PB1 (CC481K, cast phosphor bronze)
- Good corrosion resistance
- Fair weldability
FAQs
FAQs
Before you order
What does one unit of this item supply?
Quantity 1 = one 500mm length of 76.9 mm OD × 12.7 mm wall (3″ OD × 2″ ID).
Can you supply other sizes or a cutting list?
Yes — send the sizes and lengths you need with Request a quote, or call 01744 520110.
Specifications
Specifications
Product dimensions
| Outside diameter (OD) | 76.9 mm |
|---|---|
| Wall thickness | 12.7 mm |
| Inside diameter (ID) | 51.5 mm calculated |
| Imperial size | 3″ OD × 2″ ID |
| Supplied length | 500mm |
| Weight | 24.6 kg/m |
| Finish | Mill Finish |
| Grade | PB1 |
| SKU | M4U-2445-500mm |
Material properties
| Material | Bronze |
|---|---|
| Weldability | Fair |
| Internal Diameter (Supplied) | 50mm |
| Shape | Tube / Pipe |
| Corrosion Resistance | Good |
Catalogue name Bronze Round Tube PB1 Mill Finish 76.2mm OD x 50.8mm ID, 12.7mm Wall, 24.6kg/m, Corrosion Resistant, Fair Weldability - Linear Metre
Technical data (CC481K)
Technical data · alloy
PB1 / CC481K
- Cu BalanceCopper
- Sn 10–11.5%Tin
- P ≥0.5%Phosphorus
- Alloy
- Cast phosphor bronze
- Designation
- CC481K
- Density
- 8.80 g/cm³
Typical composition for the grade, for guidance — not a mill certificate for this item.
