EN 10025-2 · Structural carbon steel

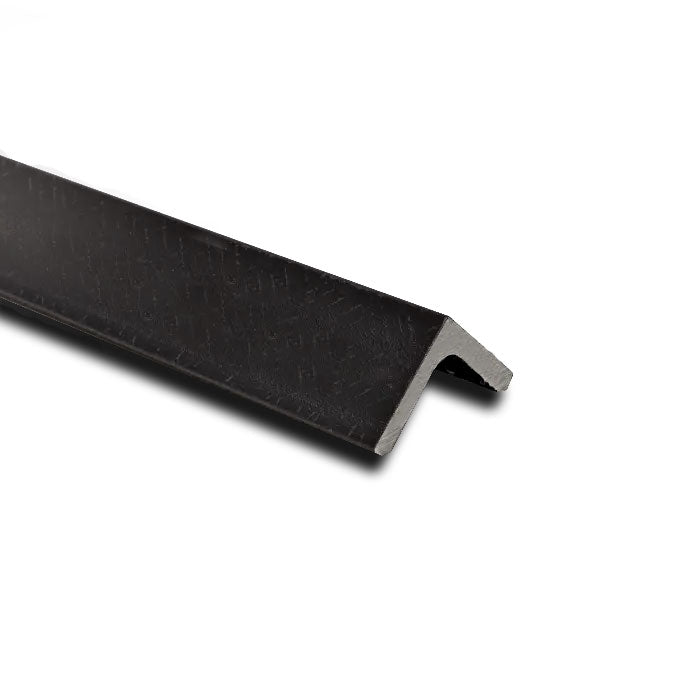

Mild Steel Angle Iron S275JR Hot Rolled Mill Finish 20mm x 20mm x 3mm - Structural Steel - Linear Metre, Excellent Weldability & Machinability
20 × 20 × 3 mmMill Finish1000mm length
10 reviews, rated 4.9 out of 5
20 × 20 × 3 mm
- Poor corrosion resistance
- Excellent weldability
- Easy to machine
£8.00incl. VATper 1000mm length
Quantity 1 = one 1000mm length.
Secure checkout: Card, Apple Pay, Google Pay or Shop Pay
- Availability
- Available to order
- Delivery
- UK only. Flat £20 delivery per order. Handling 1–2 working days, then 2–4 working days in transit. Delivery information
- Returns
- Return within 14 days of receipt. Returns policy
Overview
Overview
About this mild steel angle
These mild steel angle irons, with specific dimensions and grade (S275JR), are likely used in construction, structural framing, or other applications where their combination of strength, weldability, and machinability is advantageous. The poor corrosion resistance suggests that appropriate protective measures may be needed in corrosive environments.
- Material: The angle iron is made of mild steel, specifically using the grade S275JR. Mild steel is a type of carbon steel known for its relatively low carbon content and versatility.
-
Formability: The formability of this angle iron is described as poor, indicating that it may be less malleable or less easily shaped compared to materials with better formability.
-
Weldability: The angle iron exhibits excellent weldability, suggesting that it can be easily welded to other steel components during fabrication or construction processes.
-
Machinability: The machinability is excellent, indicating that this angle iron can be easily machined or worked with using various tools and processes.
-
Shape: The shape of this component is described as an angle, reflecting the characteristic L-shape commonly associated with angle irons.
-
Corrosion Resistance: The corrosion resistance is described as poor, suggesting that this angle iron may be susceptible to corrosion over time, especially in environments with high moisture or corrosive elements.
-
Finish: The finish is specified as a "Mill Finish," indicating that the surface has a standard untreated finish as it comes from the manufacturing process.
-
Grade: The grade of the mild steel used is S275JR, which is a specific grade with defined mechanical properties.
-
Dimensions:
- Height: The height of the angle iron is 20mm.
- Thickness: The thickness of the angle iron is 3mm.
- Width: The width of the angle iron is 20mm.
-
Weight/Metre (Kg): The weight of one meter of this angle iron is 0.88 kilograms, indicating its density and providing insights into considerations for handling and installation.
Specifications
| Maximum Cut Length | 6 Metres |
|---|---|
| Material | Mild Steel |
| Formability | Poor |
| Weldability | Excellent |
| Machinability | Excellent |
| Shape | Angle |
| Corrosion Resistance | Poor |
| Finish | Mill Finish |
| Grade | S275JR |
| Height | 20mm |
| Thickness | 3mm |
| Width | 20mm |
| Weight/Metre (Kg) | 0.88 |
Key features
- Grade S275JR (EN 10025-2, structural carbon steel)
- Poor corrosion resistance
- Excellent weldability
- Easy to machine
FAQs
FAQs
Before you order
What does one unit of this item supply?
Quantity 1 = one 1000mm length.
Can you supply other sizes or a cutting list?
Yes — send the sizes and lengths you need with Request a quote, or call 01744 520110.
Specifications
Specifications
Product dimensions
| Size | 20 × 20 × 3 mm |
|---|---|
| Supplied length | 1000mm |
| Weight | 0.88 kg/m |
| Finish | Mill Finish |
| Grade | S275JR |
| SKU | M4U-2268-1000mm |
Material properties
| Material | Mild Steel |
|---|---|
| Formability | Poor |
| Weldability | Excellent |
| Machinability | Excellent |
| Shape | Angle |
| Corrosion Resistance | Poor |
| Height | 20mm |
| Thickness | 3mm |
| Width | 20mm |
Catalogue name Mild Steel Angle Iron S275JR Hot Rolled Mill Finish 20mm x 20mm x 3mm - Structural Steel - Linear Metre, Excellent Weldability & Machinability
Technical data (EN 10025-2)
Technical data · alloy
S275JR / EN 10025-2
- C ≤0.25%Carbon
- Mn ≤1.5%Manganese
- Fe BalanceIron
- Alloy
- Structural carbon steel
- Designation
- EN 10025-2
- Density
- 7.85 g/cm³
Typical composition for the grade, for guidance — not a mill certificate for this item.
