EN 10025-2 · Structural carbon steel

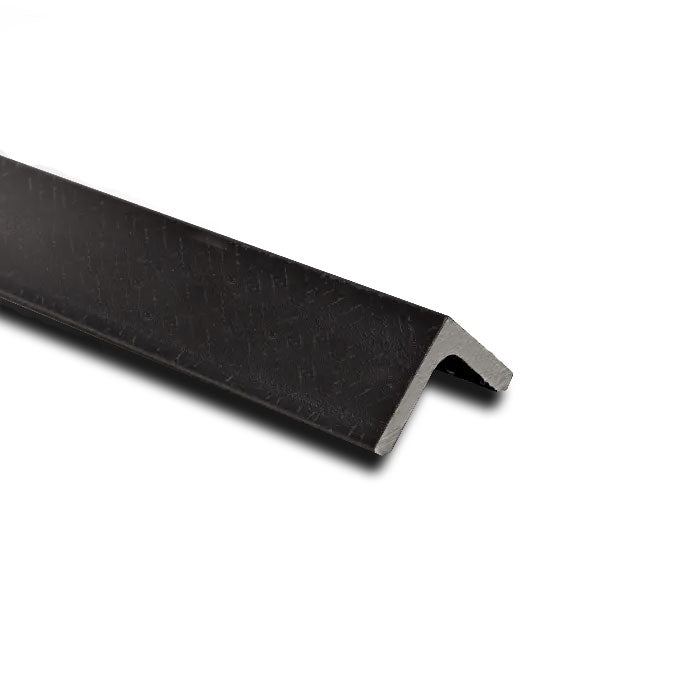

Mild Steel Angle Iron 50mm x 50mm x 5mm Hot Rolled S275JR Mill Finish Linear Metre – Heavy Duty Steel for Construction & Structural Framing
50 × 50 × 5 mmMill Finish1000mm length
12 reviews, rated 5.0 out of 5
50 × 50 × 5 mm
- Poor corrosion resistance
- Excellent weldability
£30.46incl. VATper 1000mm length
Quantity 1 = one 1000mm length.
Secure checkout: Card, Apple Pay, Google Pay or Shop Pay
- Availability
- Available to order
- Delivery
- UK only. Flat £20 delivery per order. Handling 1–2 working days, then 2–4 working days in transit. Delivery information
- Returns
- Return within 14 days of receipt. Returns policy
Overview
Overview
About this mild steel angle
This hot-rolled mild steel angle iron, with specific dimensions and grade (S275JR), is likely used in construction, structural framing, or other applications where strength and formability are crucial. The hot-rolled finish is characteristic of a standard mill finish resulting from the hot rolling process. The excellent weldability and machinability make it versatile for various fabrication and construction applications. However, its relatively poor corrosion resistance might require additional protective measures if used in corrosive environments.
-
Material: The angle iron is made of mild steel, specifically using the grade S275JR. Mild steel is a type of carbon steel known for its versatility.
-
Formability: The formability of this angle iron is described as poor, indicating that it may be less malleable or less easily shaped compared to materials with better formability.
-
Weldability: The weldability is described as excellent, suggesting that welding this angle iron can be done with ease using common welding techniques.
-
Machinability: The machinability is described as excellent, indicating that this angle iron is relatively easy to machine using various tools and processes.
-
Shape: The shape of this component is described as an angle, reflecting the characteristic L-shape commonly associated with angle irons.
-
Corrosion Resistance: The corrosion resistance is described as poor, suggesting that this hot-rolled angle iron may be more susceptible to corrosion compared to materials with better corrosion resistance.
-
Finish: The finish is specified as "Mill Finish," indicating that the angle iron has a standard finish resulting from the hot rolling process.
-
Grade: The grade of the mild steel used is S275JR, which is a specific grade with defined mechanical properties.
-
Dimensions:
- Height: The height of the angle iron is 50mm.
- Thickness: The thickness of the angle iron is 5mm.
- Width: The width of the angle iron is 50mm.
-
Weight/Metre (Kg): The weight of one meter of this angle iron is 3.77 kilograms, indicating its density and providing insights into considerations for handling and installation.
Specifications
| Maximum Cut Length | 6 Metres |
|---|---|
| Material | Mild Steel |
| Formability | Poor |
| Weldability | Excellent |
| Machinability | Excellent |
| Shape | Angle |
| Corrosion Resistance | Poor |
| Finish | Mill Finish |
| Grade | S275JR |
| Height | 50mm |
| Thickness | 5mm |
| Width | 50mm |
| Weight/Metre (Kg) | 3.77 |
Key features
- Grade S275JR (EN 10025-2, structural carbon steel)
- Poor corrosion resistance
- Excellent weldability
FAQs
FAQs
Before you order
What does one unit of this item supply?
Quantity 1 = one 1000mm length.
Can you supply other sizes or a cutting list?
Yes — send the sizes and lengths you need with Request a quote, or call 01744 520110.
Specifications
Specifications
Product dimensions
| Size | 50 × 50 × 5 mm |
|---|---|
| Supplied length | 1000mm |
| Weight | 3.77 kg/m |
| Finish | Mill Finish |
| Grade | S275JR |
| SKU | M4U-2278-1000mm |
Material properties
| Material | Mild Steel |
|---|---|
| Formability | Poor |
| Weldability | Excellent |
| Machinability | Excellent |
| Shape | Angle |
| Corrosion Resistance | Poor |
| Height | 50mm |
| Thickness | 5mm |
| Width | 50mm |
Catalogue name Mild Steel Angle Iron 50mm x 50mm x 5mm Hot Rolled S275JR Mill Finish Linear Metre – Heavy Duty Steel for Construction & Structural Framing
Technical data (EN 10025-2)
Technical data · alloy
S275JR / EN 10025-2
- C ≤0.25%Carbon
- Mn ≤1.5%Manganese
- Fe BalanceIron
- Alloy
- Structural carbon steel
- Designation
- EN 10025-2
- Density
- 7.85 g/cm³
Typical composition for the grade, for guidance — not a mill certificate for this item.
