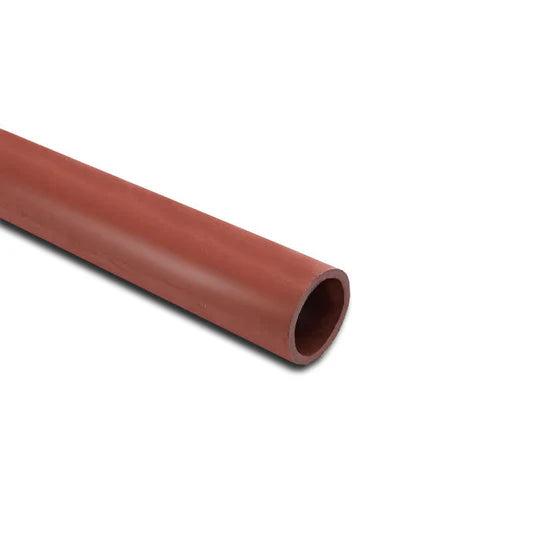

Red Oxide Mild Steel Pipe 5" (125mm) NB, 141.3mm OD, 4.8mm Wall Thickness, Durable Tube for Fluid/Gas Transport Corrosion Resistant - Linear Metre
125 mm OD × 4.8 mm wallRed Oxide3000mm length
OD = outside diameter · ID = inside diameter · *ID calculated as OD − 2 × wall
- Excellent corrosion resistance
- Good weldability
£899.86incl. VATper 3000mm length
Quantity 1 = one 3000mm length of 125 mm OD × 4.8 mm wall.
Secure checkout: Card, Apple Pay, Google Pay or Shop Pay
- Availability
- Available to order
- Delivery
- UK only. Flat £20 delivery per order. Handling 1–2 working days, then 2–4 working days in transit. Delivery information
- Returns
- Return within 14 days of receipt. Returns policy
Overview
Overview
About this mild steel round tube
This NB Mild Steel Pipe with a red oxide finish is designed for durability and functionality in fluid and gas transportation. Made from BS 1387 grade mild steel, it offers good weldability, formability, and machinability. With a diameter of 100mm and an outside diameter of 141.3mm, it features a wall thickness of 4.8mm for structural strength. The red oxide finish not only enhances corrosion resistance but also adds to its aesthetic appeal.
- Material: Mild Steel, known for its durability and strength.
- Weldability: Good, suitable for various welding applications.
- Formability: Good, can be shaped and bent easily.
- Machinability: Good, suitable for machining processes.
- Shape: Tube / Pipe, designed for fluid and gas transportation.
- Corrosion Resistance: Excellent, enhanced by red oxide finish for added protection.
-
Diameter:
- Nominal Bore: 125mm
- Nominal Bore Imperial: 5"
- Outside Diameter: 141.3mm
-
Thickness:
- Wall Thickness: 4.8mm, ensuring structural integrity and durability.
- Finish: Red Oxide, providing additional corrosion resistance and aesthetic appeal.
- Grade: BS 1387, a standard specification for screwed and socketed steel tubes and tubulars.
- Weight per Metre: 16.6 kg, calculated for efficient handling and installation.
Specifications
| Maximum Cut Length | 6 Metres |
|---|---|
| Material | Mild Steel |
| Weldability | Good |
| Formability | Good |
| Machinability | Good |
| Shape | Tube / Pipe |
| Corrosion Resistance | Excellent |
| Diameter | 125mm |
| Finish | Red Oxide |
| Grade | BS 1387 |
| Nominal Bore | 125mm |
| Nominal Bore Imperial | 5" |
| Outside Diameter | 141.3mm |
| Thickness | 4.8mm |
| Wall Thickness | 4.8mm |
| Weight/Metre (Kg) | 16.6 |
Key features
- Grade BS 1387
- Excellent corrosion resistance
- Good weldability
FAQs
FAQs
Before you order
What does one unit of this item supply?
Quantity 1 = one 3000mm length of 125 mm OD × 4.8 mm wall.
Can you supply other sizes or a cutting list?
Yes — send the sizes and lengths you need with Request a quote, or call 01744 520110.
Specifications
Specifications
Product dimensions
| Outside diameter (OD) | 125 mm |
|---|---|
| Wall thickness | 4.8 mm |
| Inside diameter (ID) | 115.4 mm calculated |
| Supplied length | 3000mm |
| Weight | 16.6 kg/m |
| Finish | Red Oxide |
| Grade | BS 1387 |
| SKU | M4U-8673-3000mm |
Material properties
| Material | Mild Steel |
|---|---|
| Weldability | Good |
| Formability | Good |
| Machinability | Good |
| Shape | Tube / Pipe |
| Corrosion Resistance | Excellent |
| Nominal Bore | 125mm |
| Nominal Bore Imperial | 5" |
Catalogue name Red Oxide Mild Steel Pipe 5" (125mm) NB, 141.3mm OD, 4.8mm Wall Thickness, Durable Tube for Fluid/Gas Transport Corrosion Resistant - Linear Metre
125 mm OD × 4.8 mm wall £899.86 per 3000mm length
