1.4301 · Austenitic stainless steel

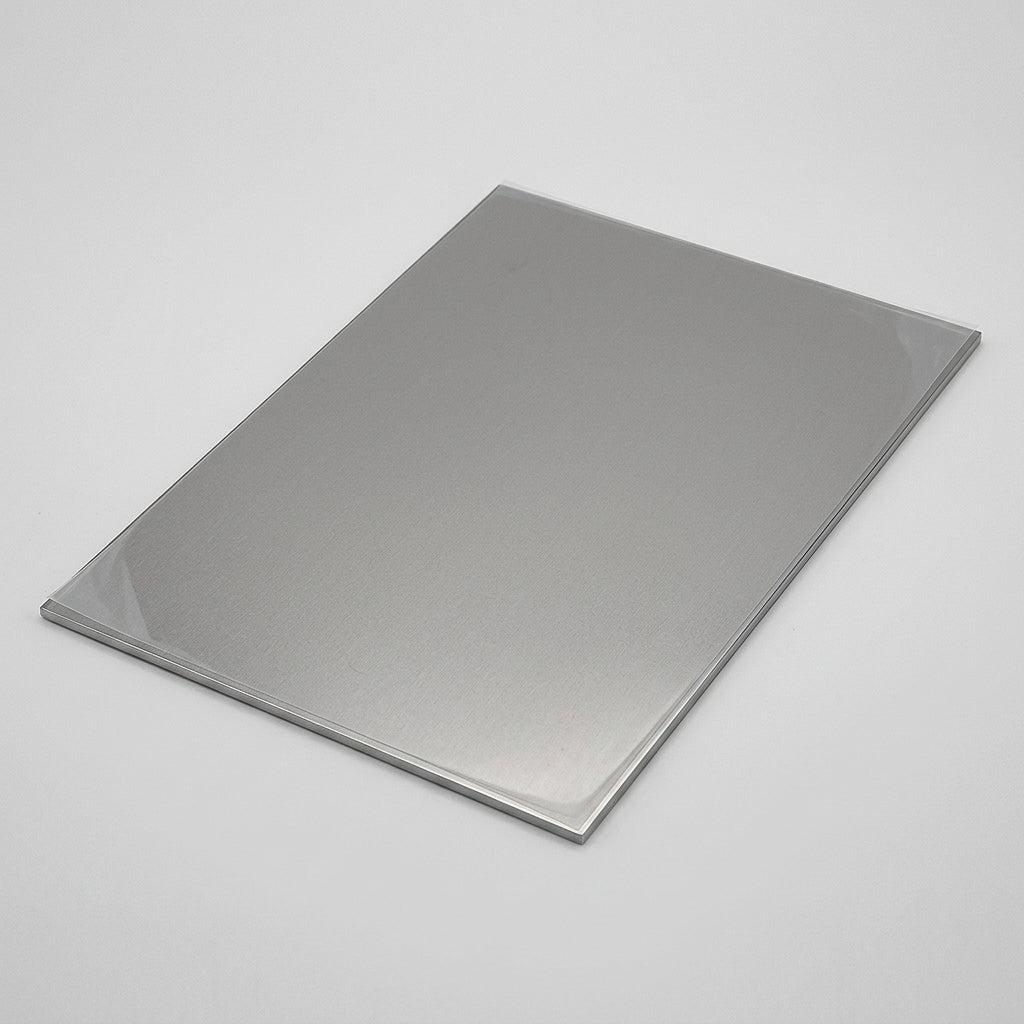

1.2mm 304 2B Stainless Steel Panel Custom Size
1.2 mm length
1.2 mm
£14.86incl. VATper item
Quantity 1 = one item as listed. The supplied length isn’t stated — ask us before ordering if it matters.
Secure checkout: Card, Apple Pay, Google Pay or Shop Pay
- Availability
- Available to order
- Delivery
- UK only. Handling 1–2 working days, then 2–4 working days in transit. Delivery information
- Returns
- Return within 14 days of receipt; a 25% restocking fee applies. Returns policy
Overview
Overview
About this stainless steel square bar
Versatile 304 2B stainless steel sheet cut to your dimensions.
This 1.2mm thick stainless steel sheet in grade 304 with a smooth 2B finish is suitable for a wide range of architectural, commercial, and industrial uses. The 2B surface provides a reflective grey appearance and is protected on one side for safe handling.
Key Features
- General purpose 304 stainless steel
- 1.2mm thickness
- Smooth 2B reflective finish
- Protective coating on one side
- Can be supplied cut to customer dimensions
Specifications
- Material: Stainless Steel
- Grade: 304
- Finish: 2B
- Thickness: 1.2mm
- Density: 8.00 g/cm³
- Tensile strength: 500–700 MPa
- Proof stress: 190 Min MPa
- Modulus of elasticity: 193 GPa
- Thermal conductivity: 16.2 W/m·K
- Thermal expansion: 17.2 x10?6 /K
- Electrical resistivity: 0.072 x10?6 O·m
- Hardness: 215 Max HB
- Elongation: 45 Min %
- Shear strength: 400–690 MPa
- Brazeability: Good
- Machinability: Good
- Weldability (arc): Very good
- Weldability (gas): Good
- Weldability (resistance): Good
- Workability (cold): Good
- Melting point: 1450°C
Applications
- Architectural cladding and panels
- Food processing equipment
- Medical and pharmaceutical environments
- Automotive components
- Laundry and hygiene installations
FAQs
FAQs
Before you order
What does one unit of this item supply?
Quantity 1 = one item as listed. The supplied length isn’t stated — ask us before ordering if it matters.
Can you supply other sizes or a cutting list?
Yes — send the sizes and lengths you need with Request a quote, or call 01744 520110.
Specifications
Specifications
Product dimensions
| Size | 1.2 mm |
|---|---|
| Supplied length | Not stated |
| Finish | Not stated |
| Grade | 304 |
| SKU | — |
Catalogue name 1.2mm 304 2B Stainless Steel Panel Custom Size
Technical data (1.4301)
Technical data · alloy
304 / 1.4301
- Cr 17.5–19.5%Chromium
- Ni 8.0–10.5%Nickel
- Alloy
- Austenitic stainless steel
- Designation
- 1.4301
- Density
- 7.90 g/cm³
Typical composition for the grade, for guidance — not a mill certificate for this item.
1.2 mm £14.86 per item
