EN AW-6082 · Structural aluminium alloy

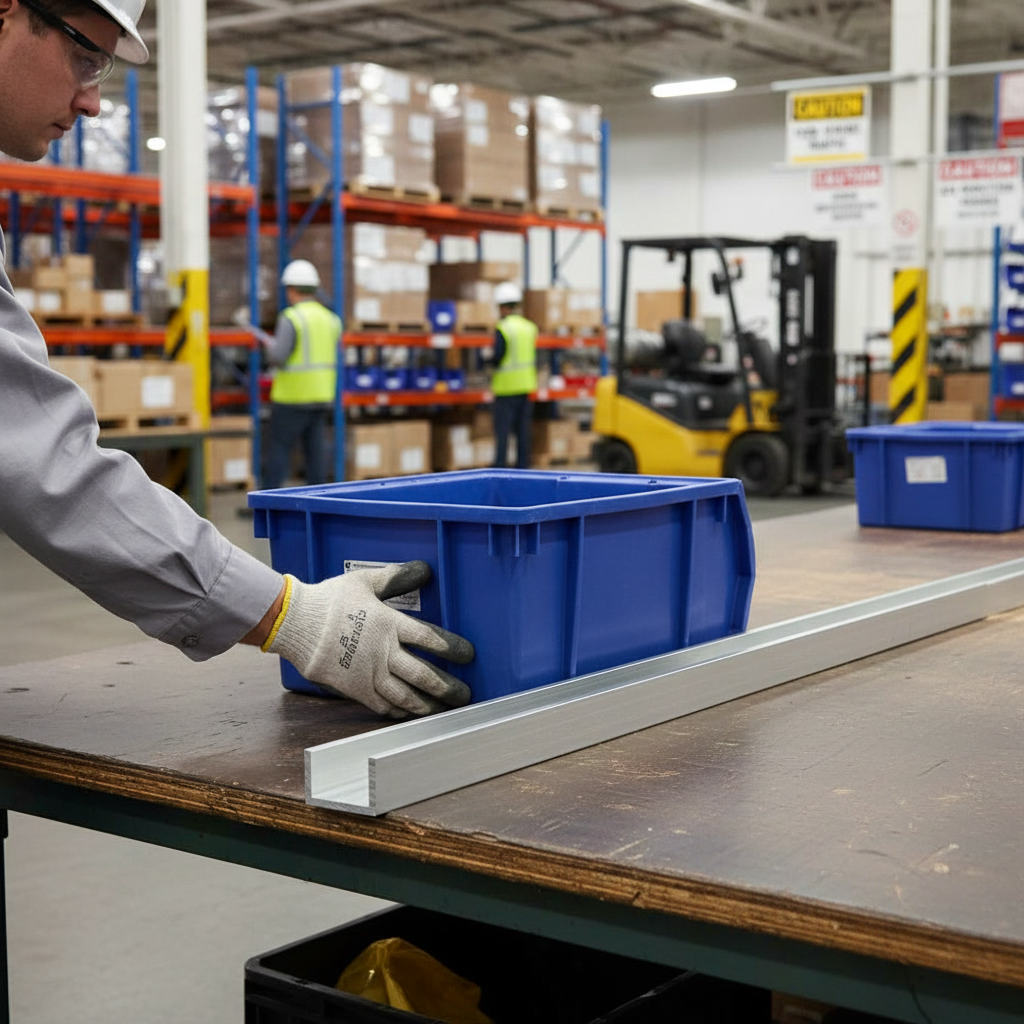

Premium Heavy Duty 76.2mm x 38.1mm Aluminium Channel 6082 T6 for Structural Applications
76.2 × 38.1 mm (3″ × 1 1/2″ × 1/4' × 5/16″)1000 mm length
76.2 × 38.1 mm
- Easy to machine
£117.34incl. VATper 1000 mm length
Quantity 1 = one 1000 mm length.
Secure checkout: Card, Apple Pay, Google Pay or Shop Pay
- Availability
- Available to order
- Delivery
- UK only. Flat £20 delivery per order. Handling 1–2 working days, then 2–4 working days in transit. Delivery information
- Returns
- Return within 14 days of receipt. Returns policy
Overview
Overview
About this aluminium channel
Product Overview
This Premium Heavy Duty Aluminium Channel, also known as 'U Channel', is manufactured from grade 6082 T6. Recognized as the highest strength aluminium in the 6000 Series, it incorporates magnesium, manganese, and silicon to enhance both mechanical properties and corrosion resistance while ensuring excellent machinability and weldability.
Applications
6082 T6 is perfectly suited for highly stressed applications, making it an ideal choice for:
- Trusses
- Bridges
- Cranes
- Transport applications
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Length | 76.2mm |
| Width | 38.1mm |
| Thickness | 6.3mm |
| Additional Thickness | 7.9mm |
Technical Specifications
- Material: Aluminium Alloy 6082 T6
- High strength and corrosion resistance
- Excellent machinability and weldability
FAQ
What is the best use for this aluminium channel?
This aluminium channel is ideal for structural applications such as bridges, trusses, and cranes where high strength is required.
Is this channel easy to work with?
Yes, the 6082 T6 alloy offers excellent machinability and weldability, making it easy to handle and fabricate.
What are the corrosion resistance properties of this aluminium channel?
The addition of magnesium and silicon enhances its corrosion resistance, ensuring durability in various environments.
Key features
- Grade 6082 (EN AW-6082, structural aluminium alloy)
- Easy to machine
FAQs
FAQs
Before you order
What does one unit of this item supply?
Quantity 1 = one 1000 mm length.
Can you supply other sizes or a cutting list?
Yes — send the sizes and lengths you need with Request a quote, or call 01744 520110.
Specifications
Specifications
Product dimensions
| Size | 76.2 × 38.1 mm (3″ × 1 1/2″ × 1/4' × 5/16″) |
|---|---|
| Supplied length | 1000 mm |
| Finish | Not stated |
| Grade | 6082 |
| SKU | AWH_IS214 |
Material properties
| Width | 38.1mm |
|---|---|
| Thickness | 6.3mm |
| Additional Thickness | 7.9mm |
Catalogue name Premium Heavy Duty 76.2mm x 38.1mm Aluminium Channel 6082 T6 for Structural Applications
Technical data (EN AW-6082)
Technical data · alloy
6082 / EN AW-6082
- Si 0.7–1.3%Silicon
- Mg 0.6–1.2%Magnesium
- Mn 0.4–1.0%Manganese
- Alloy
- Structural aluminium alloy
- Designation
- EN AW-6082
- Density
- 2.70 g/cm³
Typical composition for the grade, for guidance — not a mill certificate for this item.
