Premium Heavy Duty EV Charging Station Tester with Comprehensive Testing Capability for Mode 3 Type 1 and Type 2 Stations

Product Overview

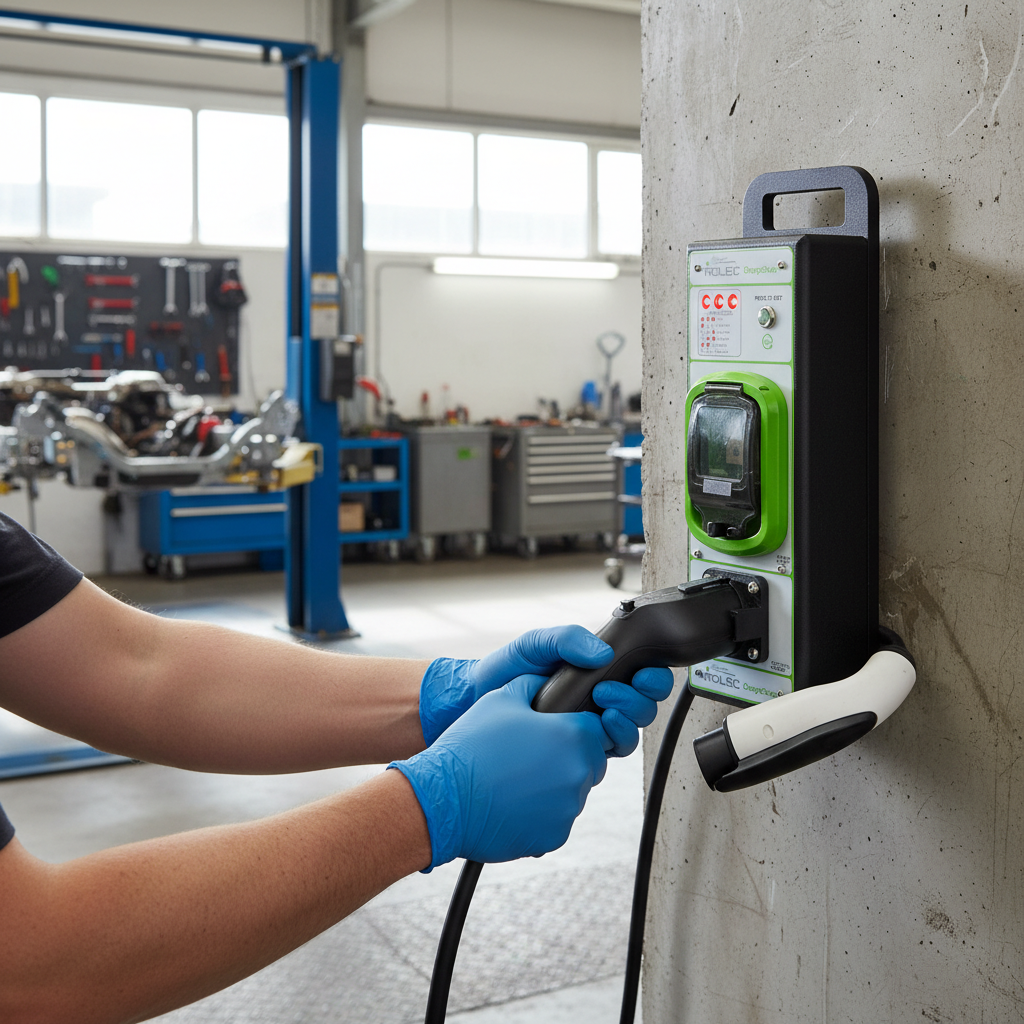

The Premium EV Charging Station Tester is designed specifically for electricians, enabling them to confidently conduct comprehensive and accurate tests on any single-phase mode 3 type 1 and type 2 EV charging stations. This tester acts as a car simulator when a vehicle is not present, streamlining the testing process.

Key Features

• Tests J1772 (type 1) tethered leads
• Tests IEC62196 (type 2) sockets
• Includes a 1-meter J1772 (type 1) to IEC62196 (type 2) adapter
• IP65 rated 13amp sockets for earth loop and RCD/RCBO tests
• Tests contactor actions and verifies earthing presence
• Checks for correct polarity
• Confirms IEC61851-1 mode 3 communication compliance

Technical Specifications

Manufactured with durable materials to withstand demanding conditions, the tester includes:

• Heavy-duty polypropylene construction
• Impact-resistant polycarbonate info fascia
• Hard-wearing polypropylene carry handle
• Built-in polarity check LEDs
• Built-in earth presence LEDs
• Latching test button
• IP65 rated 13amp test socket and cover
• Compliance with BS7671 wiring regulations
• Meets IET EV regulations

Dimensions & Specifications

Performance

This tester simulates an electric vehicle and performs multiple critical tests, ensuring safety and compliance:

• Tests J1772 (type 1) tethered leads
• Tests IEC62196 (type 2) tethered leads
• Tests IEC62196 (type 2) sockets
• Verifies IEC61851-1 mode 3 communication compliance
• Checks for correct polarity
• Tests for earthing presence
• Tests contactor actions

FAQ

• What types of EV charging stations can this tester evaluate?
  This tester is designed to evaluate single-phase mode 3 type 1 and type 2 EV charging stations.
• Is the tester suitable for outdoor use?
  Yes, the IP65 rating ensures protection against dust and water, making it suitable for outdoor applications.
• What materials is the tester made from?
  The tester is constructed from heavy-duty polypropylene and impact-resistant polycarbonate for durability.
