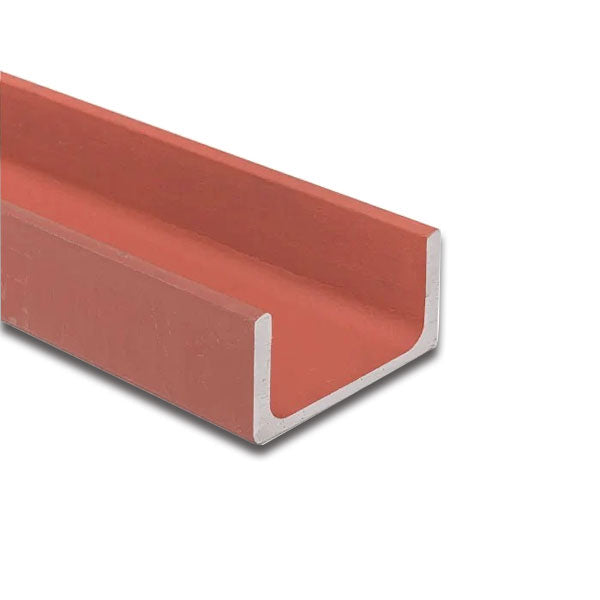

Mild Steel Channel 76mm x 38mm x 6.7mm S275JR Red Oxide Coated C-Shape Excellent Weldability & Machinability 6.7kg/M - Linear Metre

This mild steel channel is a C-shaped structural component with specific dimensions and properties. It shares characteristics such as excellent weldability and machinability but has poor formability. The Red Oxide finish suggests a protective coating against corrosion, and the Good corrosion resistance indicates a higher resistance compared to poor. The use of S275JR grade indicates a specific quality of mild steel. The dimensions are 38mm in height, 76mm in width, and 6.7mm in thickness, with a leg thickness of 6.8mm and a base thickness of 5.1mm. The weight per meter is 6.7 Kg.

1. Material: Mild Steel
2. Formability: Poor (indicating that it may not be easily shaped or bent)
3. Weldability: Excellent (suggesting that it can be welded easily)
4. Leg Thickness: 6.8mm
5. Base Thickness: 5.1mm
6. Machinability: Excellent (implying that it is easily machinable)
7. Shape: Channel (a C-shaped structural section)
8. Corrosion Resistance: Good (indicating a better resistance to corrosion)
9. Finish: Red Oxide (a type of protective coating for corrosion resistance, often reddish-brown in color)
10. Grade: S275JR (a specific grade of mild steel)
11. Height: 38mm
12. Width: 76mm
13. Thickness: 6.7mm
14. Weight/Metre: 6.7 Kg (indicating the weight of one meter length of the channel)
